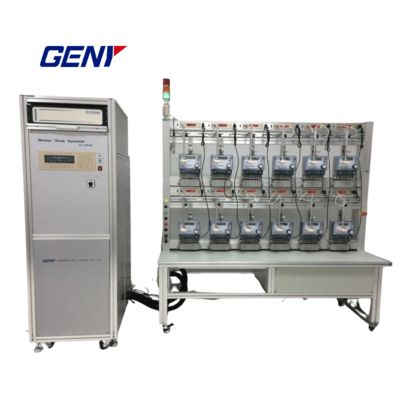

Universal Three-Phase Energy Meter Advanced Test Bench

Name: Universal Three-Phase Energy Meter Advanced Test Bench
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

브랜드 이름:	GENY
모델 번호:	YC1893D
MOQ:	1 개 PC
가격:	협상 가능
지불 조건:	l/c, t/t, d/p
공급 능력:	달 당 30 PC

상세 정보

제품 설명

상세 정보

원래 장소:

중국

인증:

ISO, CE

용법:

다기능 에너지 측정기, 전력량 측정기, 산업용 및 가정용 측정기, 표준 전기 에너지 측정기, 선금 측정기, 무효 에너지 측정기, 다중 속도 전력량 측정기, 최대 수요 측정기

전기 기기:

삼상 삼선

이론:

전자 계량기

전압 공급:

3x220/380V ± 10%(또는 맞춤형) 50/60Hz ± 2Hz

포장 세부 사항:

합판 케이스

공급 능력:

달 당 30 PC

강조하다:

universal three-phase energy meter

stationary meter test bench

energy meter test bench

제품 설명

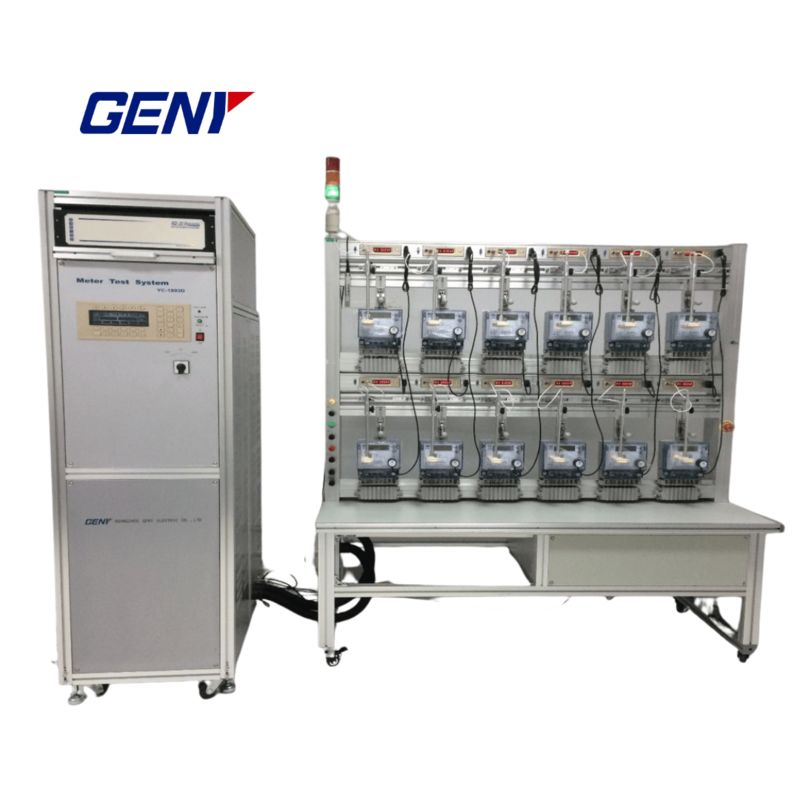

Universal Three-Phase Energy Meter Advanced Test Bench

Product Attributes

Attribute	Value
Usage	Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter
Electric Equipment	Three-phase Three-wire
Theory	Electronic Meter
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz

Product Description

Guangzhou GENY Electric Co. Ltd. is technically advanced, enjoys broad market reach, is highly reputable, commands superior resources, and provides comprehensive customer service.

Key Features

Supports all regional wiring configurations: 3-phase 4-wire (3P4W), 3-phase 3-wire (3P3W) and single-phase 2-wire (1P2W) meters.
One platform accommodates ferrite-disc mechanical, electro-mechanical and fully electronic meters with selectable automatic, semi-automatic or manual test sequences.
Parallel testing of meters sharing identical specifications but differing meter constants--cuts batch time and labour cost.
Automatic optical detection of mechanical meter rotor marks increases throughput and removes operator dependency.
Comprehensive test modes: active energy, reactive energy and cross-phase reactive energy verification.
Optional neutral-current measurement for tamper detection and regulatory compliance.
Built-in starting and no-load (creep) tests per IEC/ANSI standards.
Optional ICT (Isolated Current Transformer) at every position enables secure testing of 3-phase meters with internal I-P (current-voltage) links still closed.
Full protection against overload, shorted voltage circuits and open current circuits safeguards both operator and asset.
Lightweight, robust aluminium-alloy frame resists corrosion in tropical environments.
Synchronised swing-arm optical probes streamline set-up and reduce handling time.
User-friendly Windows-based software (Win 2000/XP/7/8/10) covers every modern meter function: error test, harmonic analysis, maximum-demand verification, influence quantities, etc.

Technical Parameters

Technical spec.	YC1893D-ICT-6	YC1893D-ICT-12	YC1893D-ICT-24	YC1893D-ICT-48
Number of meter positions equipped ICT	6	12	24	48
Accuracy class of ICT	0.05 / 0.01
Accuracy	0.05
Power Source	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Standard Meter	SZ03A-K6 / SZ03A-K8 (customized)
Scanning Head	YCG-S Series
Test voltage output(Phase-Neutral)	3x(24V~288V)(or customized)
Power of the voltage output	Max. 3x100VA	Max. 3x250VA	Max. 3x500VA	Max. 3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Test current output	3x(1mA~100A)
Power of the current output	Max. 3x150VA	Max. 3x350VA	Max. 3x750VA	Max. 3x1500VA
Phase angle range	0~360⁰
Phase angle resolution	0.01⁰
Phase angle setting accuracy	0.1⁰
Frequency range	45Hz~65Hz
Frequency resolution	0.01Hz
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~85%
