| 브랜드 이름: | GENY |
| 모델 번호: | SZ03A-K6 |
| MOQ: | 1 |
| 가격: | negotiate rates |
| 지불 조건: | t/t, l/c, d/p, t/t |
| 공급 능력: | 2 세트/ 3 개월 |

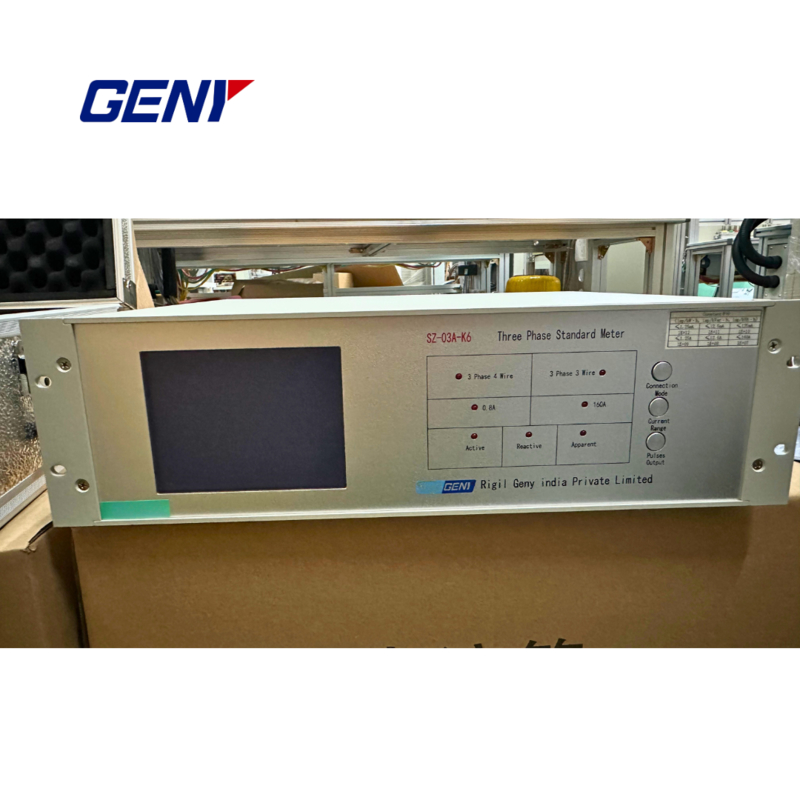

| SZ03A-K6 | |
|---|---|
| Test Voltage | |
| Range | 30V - 480V |
| Error | ±0.05% (30V - 480V) ±0.1% (5V - 50V) |
| Display range | 5.000000V - 480.0000V |
| Test Current | |
| Range | 10mA - 120A |
| Error | ±0.05% (0.2A - 120A) ±0.1% (10mA - 0.2A) |
| Display range | 1.000000mA-120.0000A |
| Power measure error | |
| Active power | ±0.05% (0.2A - 120A) |
| Reactive power | ±0.1% (0.2A - 120A) |
| Apparent power | ±0.1% (0.2A - 120A) |
| Energy measure error | |
| Active energy | -- |
| Reactive energy | -- |
| Apparent energy | -- |
| Phase angle | |
| Range | 0º - 360º |
| Error | ±0.05º |
| Display range | 0.000001º -- 359.9999º |
| Frequency | |
| Range | 45Hz - 65Hz |
| Display range | 45.0000 - 65.0000 |
| Pulse output | |
| High frequency output(CH) | 1*109 (0.2A - 1A) 1*108 (1A - 10A) 1*107 (10A - 120A) |
| Low frequency output(CL) | 2*10-5*CH |
| Pulse ratio | 1:1 |
| Output level | 5V |
| Pulse input | |
| Input level | -- |
| Input frequency | -- |
| Other | |
| Voltage Supply | 220V ± 10%, 50/60Hz ± 2Hz |
| Ambient temperature | 10°C -- 30°C |
| Influence of external fields | ≤ 0.05 % / mT |
| Relative humidity | 45% -- 75% |
| Dimensions (W*H*D) (mm) | 432*131*308 |
| Weight (kg) | 15 |
