정지 미터 테스트 벤치
Created with Pixso.

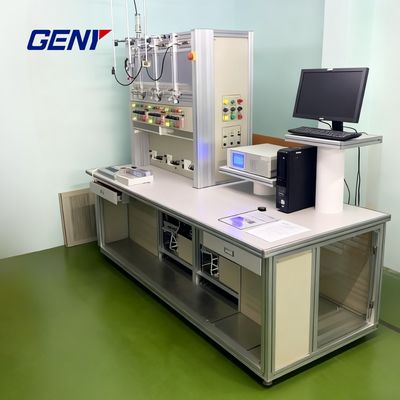

High-Precision Energy Meter Test Bench for IEC Accuracy Verification

High-Precision Energy Meter Test Bench for IEC Accuracy Verification

브랜드 이름: GENY
모델 번호: YC1891D
MOQ: 1개
가격: 협상 가능
지불 조건: 신용장, T/T, D/P
공급 능력: 한 달에 30 개
상세 정보
원래 장소:
중국
인증:
ISO, CE
전압:
240/415V AC 공급(+5% & -10%) 또는 맞춤형
빈도:
50/60Hz ±2Hz
전력 용량:
> 3 × 6kVA
주변 온도:
-10°C ~ +40°C
상대습도:
35% ~ 95%
시스템 접지:
중성 접지
서지 보호 수준:
≥ 10kV/120줄(10/1000μs)
포장 세부 사항:
합판 케이스
공급 능력:
한 달에 30 개
강조하다:

IEC accuracy energy meter test bench

,

high-precision meter test equipment

,

stationary energy meter verification bench

제품 설명
High-Precision Energy Meter Test Bench for IEC Accuracy Verification
Product Overview

Our Meter Test Bench is a high-precision system designed for comprehensive smart meter testing, energy meter calibration, and accuracy verification according to international standards (IEC 62052-11, IEC 62053-21/22/23). It provides reliable, automated testing for both single-phase and three-phase energy meters.

Key Features
  • Multi-Communication Interface Support: Supports RS232 and Ethernet communication ports for testing various smart meters and reference standards.
  • Calibrated Terminals for Test Bench Verification: Equipped with precision calibrating terminals for easy and accurate verification of the test bench system.
  • Single-Phase & Three-Phase Meter Testing: Compatible with both 1-phase and 3-phase energy meters, ensuring flexibility across all meter types.
  • Reference Standard Meter Accuracy Testing: Enables accuracy testing of the reference standard meter to maintain calibration integrity.
  • Pre-Warming Function: Automatically pre-warms meters before testing to stabilize measurement conditions and improve test accuracy.
Accuracy & Performance Tests
  • Accuracy Testing as per IEC Standards: Fully compliant with IEC 62052-11 and IEC 62053-21/22/23 for precise performance evaluation.
  • Creeping Test: Detects meter movement under no-load conditions to ensure meter stability and accuracy.
  • Starting Current Test: Verifies meter performance at minimal current levels according to IEC specifications.
  • Repeatability of Error Test: Confirms the consistency and reliability of meter measurement accuracy.
  • Dial Test: Evaluates mechanical meter register performance for proper functionality.
Influence Quantity & Harmonic Tests
  • Influence Quantity Tests: Assess meter accuracy under various influence quantities such as voltage, frequency, reverse phase sequence, and voltage unbalance.
  • Harmonic Influence Tests: Measures the influence of harmonic components in voltage and current circuits per IEC requirements.
  • Sub-Harmonics & Odd Harmonics Testing: Performs sub-harmonic and odd harmonic tests compliant with IEC 62052-11 / 62053-21/22/23 standards.
