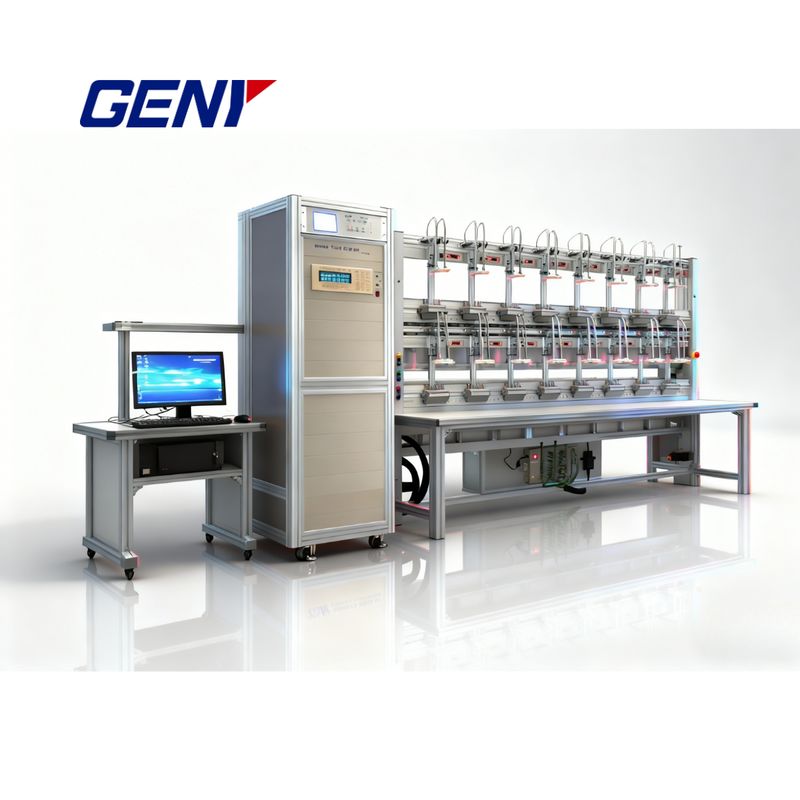

YC1893D Professional Three-Phase Meter Test Bench for Electricity Meter Calibration

Name: YC1893D Professional Three-Phase Meter Test Bench for Electricity Meter Calibration
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893R
Availability: InStock

브랜드 이름:	GENY
모델 번호:	YC1893R
MOQ:	1개 조각
가격:	협상 가능
지불 조건:	신용장, T/T, D/P
공급 능력:	달 당 10 PC

상세 정보

제품 설명

상세 정보

원래 장소:

중국

인증:

ISO, CE

문서:

Geny product brochure 2020.pdf

전압:

3x230/400V ±10%, 50/60Hz ±2Hz

빈도:

50 Hz ± 15%

전력 용량:

> 6kVA

전력 효율성 (최대 부하):

≥85%

주변 온도:

-10 ° C- +40 ° C

상대습도:

35% - 85%

포장 세부 사항:

표준 수출 상자

공급 능력:

달 당 10 PC

강조하다:

three-phase meter test bench

electricity meter calibration equipment

professional energy meter tester

제품 설명

YC1893D Professional Three-Phase Meter Test Bench for Electricity Meter Calibration

Overview of YC1893D Three-Phase Meter Test System

The YC1893D Three-Phase Meter Test System is a high-precision electricity meter calibration device and fully automatic three-phase meter test bench. Designed for single-phase and three-phase electric energy meters, it provides reliable, efficient, and accurate meter verification for laboratories, utility companies, and meter manufacturers.
The YC1893D is a versatile smart meter testing system suitable for a wide range of meter types including mechanical meters, electronic-mechanical meters, and electronic smart meters. It offers automated, semi-automatic, and manual operation modes, ensuring flexible and precise electricity meter calibration for production, laboratory, or industrial environments.

System Components and Configuration

The YC1893D meter test system consists of:

Three-phase power source for precise voltage and current output
Three-phase reference standard meter for high-accuracy calibration
Meter suspension racks compatible with single-phase and three-phase meters
Smart meter function testing system (optional: fixed voltage, optical probe, relay control test, ripple control box)
PC and software for automated control, data acquisition, and test management
Auxiliary components necessary for complete electricity meter testing

Standards Compliance for Meter Calibration

The YC1893D meter test system is fully compliant with international standards:

IEC 60736 - stationary meter test systems
IEC 62052-11 and IEC 62053 series - accuracy classes 0.2, 0.5, 1.0
IEC 62056 - electricity metering data exchange
EN 50470 series - European utility meters
IEC 61010 - electrical safety

These certifications ensure IEC-compliant meter testing for both single-phase and three-phase meters, including smart meters.

Specifications

Power Source

Parameter	Value
Test voltage output (Phase-Neutral)	3x(24 - 300 V)
Power of the voltage output	3×1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd - 21st free programmable

Current

Parameter	Value
Test current output	1 mA - 120 A
Power of the current output	3×2000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd - 21st free programmable
