YCS-103 Three-Phase Power Source for Energy Meter Testing

브랜드 이름:	GENY
모델 번호:	YCSS-103
MOQ:	1
가격:	negotiate rates
지불 조건:	t/t, l/c, d/p, t/t
공급 능력:	10개/1개월

상세 정보

제품 설명

상세 정보

원래 장소:

중국

인증:

ISO, CE

문서:

Catalogue——Meter Test S...m..pdf

설정 정확도:

최종 범위 값에서 0.05%보다 좋음

안정:

0.005%/h 이상(적산 시간 150초)

왜율:

선형 저항 부하의 경우 0.3%보다 우수합니다

하모닉스:

2 차 - 21 번째 무료 프로그래밍 가능

전압 공급:

3×220/380V±10% 또는 맞춤형 50/60Hz±2Hz

테스트 전류 출력:

3×(1mA – 100A)

포장 세부 사항:

합판 케이스

공급 능력:

10개/1개월

강조하다:

three-phase power source for energy meters

stationary power source with warranty

energy meter testing power supply

제품 설명

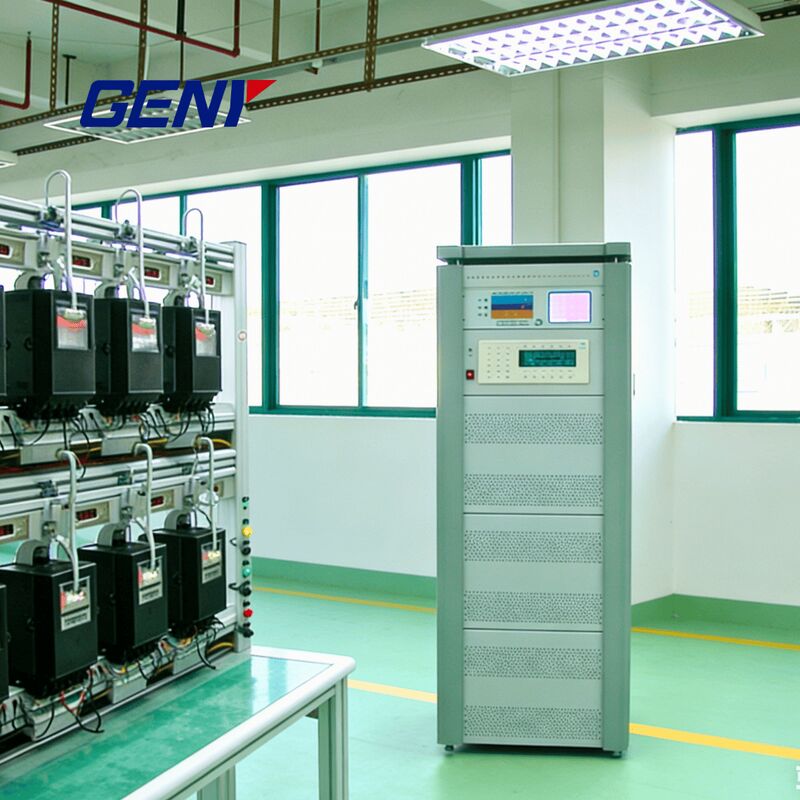

YCS-103 Three-Phase Power Source for Energy Meter Testing

The YCS-103 Three-Phase Power Source is a high-precision, programmable power source designed for energy meter testing and calibration. It provides independent three-phase voltage and current outputs, making it suitable for testing both three-phase and single-phase electricity meters in laboratories, meter production lines, and test benches.

Key Features & Functions

Three independent voltage and current channels for accurate testing of three-phase and single-phase energy meters
High accuracy and long-term output stability ensures reliable and repeatable results for meter verification and calibration
Programmable harmonic output (2nd-41st harmonics) with adjustable harmonic amplitude and phase angle, compliant with modern meter testing standards
RS-232 communication interface enables fully automatic operation and easy integration with meter test bench systems
Optional built-in keyboard supports both manual control and PC-controlled operation
Rugged aluminum alloy housing provides lightweight, corrosion-resistant construction suitable for long-term industrial use
Comprehensive protection design with built-in protection against overload, voltage short-circuit, and current open-circuit
User-friendly control software with simple interface for fast setup, operation, and testing efficiency
CE certified and complies with EU health, safety, and EMC standards

Typical Applications
