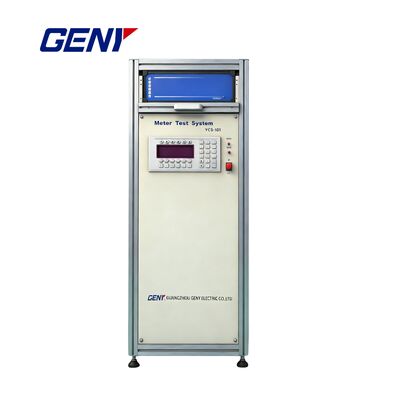

Three-Phase Stationary Power Source for Power Utilities and Meter Manufacturers

브랜드 이름:	GENY
모델 번호:	YCSS-103
MOQ:	1
가격:	negotiate rates
지불 조건:	t/t, l/c, d/p, t/t
공급 능력:	10개/1개월

상세 정보

제품 설명

상세 정보

원래 장소:

중국

인증:

ISO, CE

문서:

Catalogue——Meter Test S...m..pdf

입력 전압:

3 × 220V / 380V ±10% 또는 맞춤형

빈도:

50/60Hz ±2Hz

주변 온도:

–10°C ~ +40°C

상대습도:

35% – 85%(비응축)

포장 세부 사항:

합판 케이스

공급 능력:

10개/1개월

강조하다:

three-phase stationary power source

stationary power source for utilities

power source for meter manufacturers

제품 설명

Three-Phase Stationary Power Source for Power Utilities and Meter Manufacturers

High-Accuracy Three-Phase Stationary Power Source

Professional-grade power source designed specifically for power utilities and meter manufacturers, delivering exceptional accuracy and reliability for testing applications.

Key Features

High accuracy with excellent long-term output stability
RS232 communication interface supporting automated operation
Optional built-in keyboard for convenient manual operation
Harmonics from 2nd to 21st order freely programmable in amplitude and phase angle
Rugged aluminum alloy enclosure: lightweight, high strength, and corrosion-resistant
User-friendly PC control software for easy operation and system integration
Comprehensive protection functions including overload, short-circuit voltage, and open-circuit current protection

Technical Specifications

Voltage Output

Parameter	Specification
Test Voltage (Phase-Neutral)	3 × (24 V - 288 V) or customized
Voltage Output Power	3 × 100 VA, 3 × 250 VA, 3 × 500 VA, 3 × 1000 VA
Resolution	Better than 0.01% of full-scale range
Setting Accuracy	Better than 0.05% of final range value
Stability	Better than 0.005%/h (integration time: 150 s)
Load Regulation (0 to Max Load)	< 0.01%
Distortion Factor	< 0.3% (linear resistive load)
Harmonics	2nd - 21st, freely programmable

Current Output

Parameter	Specification
Test Current Range	3 × (1 mA - 100 A)
Current Output Power	3 × 150 VA, 3 × 350 VA, 3 × 750 VA, 3 × 1500 VA
Resolution	Better than 0.01% of full-scale range
Setting Accuracy	Better than 0.05% of final range value
Stability	Better than 0.005%/h (integration time: 150 s)
Load Regulation (0 to Max Load)	< 0.01%
Distortion Factor	< 0.3% (linear resistive load)
Harmonics	2nd - 21st, freely programmable
