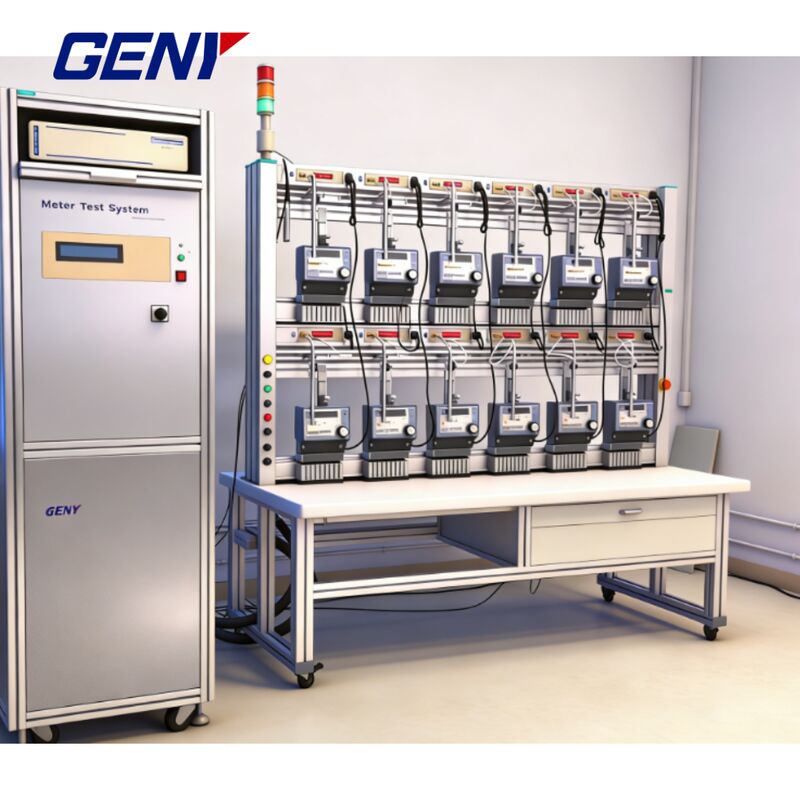

Three-Phase Energy Meter Test Bench – High Precision & Automatic

브랜드 이름:	GENY
모델 번호:	YC-1893D-ICT
MOQ:	1개
가격:	협상 가능
지불 조건:	신용장, T/T, D/P
공급 능력:	100/년

상세 정보

제품 설명

상세 정보

원래 장소:

중국

인증:

ISO, CE

문서:

Three-phase meter test syst...em.pdf

출력 현재 전력:

2800VA (최대)

출력 전압 전력:

2000VA (최대)

해결:

전체 스케일 값의 0.01%보다 우수합니다

설정 정확도:

최종 범위 값에서 0.05%보다 우수함 안정성

안정:

0.005% /h보다 낫다 (통합 시간 150 년대)

포장 세부 사항:

합판 케이스

공급 능력:

100/년

강조하다:

three-phase energy meter test bench

high precision meter test bench

automatic stationary meter test bench

제품 설명

Three-Phase Energy Meter Test Bench – High Precision & Automatic

Our Three Phase Electric Energy Meter Test Bench is a high-precision, reliable, and user-friendly solution designed for accurate testing and calibration of various types of electricity meters. It is widely used by power utilities, metrology institutes, and energy meter manufacturers worldwide.

Key Features of the Energy Meter Testing System

ICT installed at each meter position, allowing simultaneous testing of three-phase energy meters with closed current and voltage circuits (I-P links)
Supports mechanical meters, electromechanical meters, and electronic energy meters, with flexible automatic, semi-automatic, and manual operation modes
Compatible with multiple wiring configurations: 3P4W, 3P3W, and 1P2W energy meters
Multiple testing modes including active energy testing, reactive energy testing, and cross-connected reactive energy testing
Capable of testing meters with the same specifications but different meter constants at the same time, improving laboratory efficiency
Automatic disc mark positioning for mechanical meters, greatly enhancing testing speed and repeatability
Supports starting current test and creeping test, fully compliant with international standards
Comprehensive safety protection including overload protection, short voltage circuit protection, and open current circuit protection, ensuring safe operation
Synchronized swinging scanning heads simplify control and reduce operator workload
Made of high-strength aluminum alloy, lightweight, durable, and corrosion-resistant, suitable for long-term industrial use
Powerful and intuitive energy meter testing software, compatible with Windows 2000 / XP / 7 / 8 / 10, supporting:
- Accuracy (error) testing
- Harmonic testing
- Demand testing
- Influence testing (voltage, frequency, harmonics, etc.)

Why Choose Our Energy Meter Test Bench

High accuracy class up to 0.05, ensuring reliable and repeatable test results
Available in 3 to 48 meter positions, suitable for small labs and large-scale production lines
Extremely stable power source, guaranteeing precise measurement under all test conditions
Supports timing (clock) error testing for smart meters
Comprehensive influence testing of voltage, frequency, and harmonics, meeting IEC and international standards
Each meter position equipped with RS232 and Ethernet communication ports for smart meter testing
Optional tilt and impact test, ideal for quality control and certification testing
Over 18 months warranty, providing long-term confidence and reduced maintenance cost
