High-Precision Smart Meter Calibration System

Name: High-Precision Smart Meter Calibration System
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

브랜드 이름:	GENY
모델 번호:	YC1893D
MOQ:	1개
가격:	협상 가능
지불 조건:	신용장, T/T, D/P
공급 능력:	100/년

상세 정보

제품 설명

상세 정보

원래 장소:

중국

인증:

ISO, CE

문서:

Catalogue——Meter Test S...m..pdf

설정 정확도:

최종 범위 값에서 0.05%보다 좋음

안정:

0.005%/h 이상(통합 시간 150초)

하모닉스:

2 차 - 21 번째 무료 프로그래밍 가능

왜율:

선형 저항 부하의 경우 < 0.3%

전압 출력의 전력:

3×2000VA

해결:

전체 스케일 값의 0.01%보다 우수합니다

포장 세부 사항:

합판 케이스

공급 능력:

100/년

강조하다:

smart meter calibration system

high-precision meter test system

stationary meter calibration equipment

제품 설명

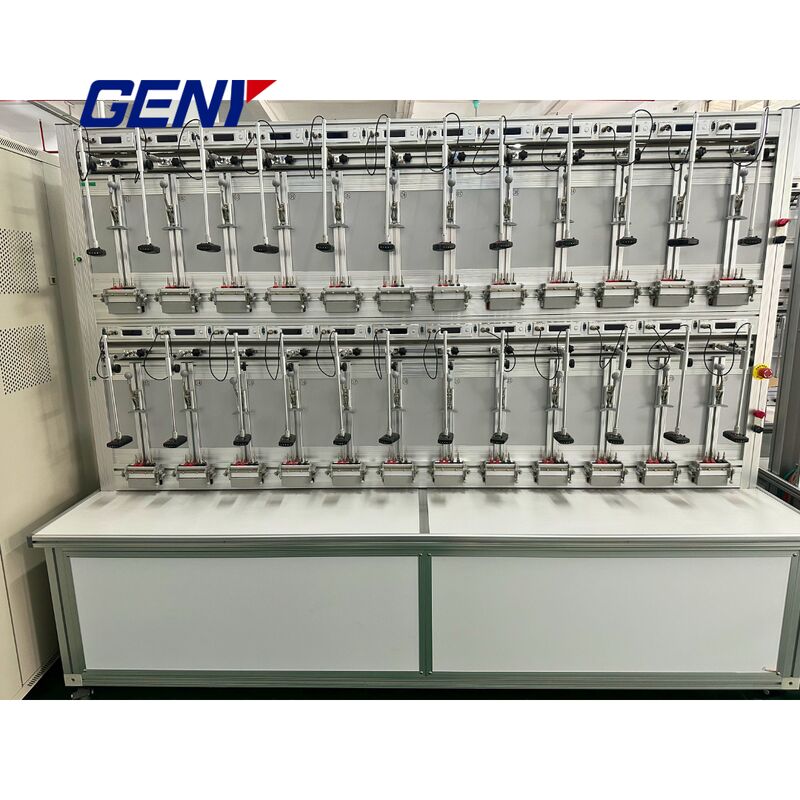

High-Precision Smart Meter Calibration System

Features & Functions

The GENY Three Phase Meter Test Bench offers advanced functions for calibration, testing, and verification of three-phase energy meters, including smart meters.

Supports parallel communication ports for smart meter testing via RS232
Calibration terminals on the test rack for bench verification
Compatible with EDMI three-phase energy meters for calibration and pulsing tests
Accuracy testing of reference standard meters
Pre-warming function for stable measurements
Accuracy testing according to IEC standards
Creeping and starting current tests
Repeatability error tests
Dial (register) tests
Influence quantity tests related to accuracy, including:
- Voltage variations
- Frequency changes
- Reverse phase sequence
- Voltage unbalance
Harmonic influence testing in voltage and current circuits according to IEC
Sub-harmonics testing per IEC standards (IEC 62052-11 / 62053-21/22/23)
Optional odd harmonics testing

Customized Features

The meter test bench can be customized to meet advanced testing requirements:

Individual (voltage/current separate) and combined (power) calibration and testing
Dual 24+24 positions configuration: only 24 positions run at a time with relay switch control (software-controllable)
Compatible with CT and WC ranges: 1(6)A, 1(10)A, 5(20)A, 5(100)A, 5(120)A
Supports gating and pulse methods for calibration and testing
Compatible with DLMS protocol for Mk10M meters
Compatible with EDMI Command Line for Mk10E meters

Primary Competitive Advantages
