LPEP 385/20M Series Surge Protective Device with 385V Max Continuous Voltage 35mm Rail Mounting and Up≤1.8kV Protection Level

브랜드 이름:	GENY
모델 번호:	LPEP 270/20g T3
MOQ:	1
가격:	negotiate rates
지불 조건:	t/t, l/c, d/p, t/t
공급 능력:	10개/1개월

상세 정보

제품 설명

상세 정보

원래 장소:

중국

인증:

ISO, CE

문서:

Geny product brochure 2020.pdf

정격 전압 "U0":

220V

맥스. 연속 전압 "UC":

270V

맥스. 배출 전류 "IMAX":

40ka

빈도:

0-65Hz

포장 세부 사항:

합판 케이스

공급 능력:

10개/1개월

강조하다:

385V Max Continuous Voltage Surge Protective Device

35mm Rail Mounting SPD

Up≤1.8kV Protection Level Lightning Protection Device

제품 설명

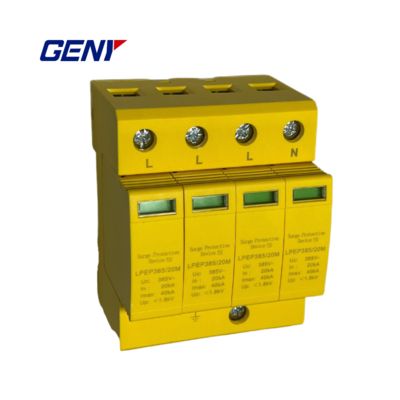

LPEP 385/20M Series Surge Protective Device

The LPEP 385/20M T2 Series Surge Protective Device provides reliable overvoltage and surge protection for power secondary systems, including distribution cabinets, feeder panels, control/monitoring panels, and UPS cabinets.

Features & Functions

High-quality phosphor bronze pins ensure minimal residual voltage and withstand repeated plugging
Advanced current-sharing technology for continuous and multiple lightning strikes
Fail-safe thermal cutoff mechanism prevents short circuits during faults
Compatible with online monitoring systems
V0 fire-rated housing with 35mm rail mounting for easy installation and maintenance

Operating Conditions

Temperature: -40°C to +60°C

Humidity: 30%-95% RH (at 25°C)

Atmospheric Pressure: ≥74.8 kPa (equivalent to 2500m altitude)

Specifications

Model	LPEP385/20M -4P/DL
Rated Voltage "U0"	220V
Max. Continuous Voltage "Uc"	385V
Nominal Discharge Current "In"(8/20uS)	20kA
Max. Discharge Current "Imax"	40kA
Protection Level "Up"	Up≤1.8kV
Response Time "tA"	≤25ns
Frequency	0-65Hz
Protection Model	Common Mode Protection
Power System	TT, TN
Dimensions	72mm90mm68mm
