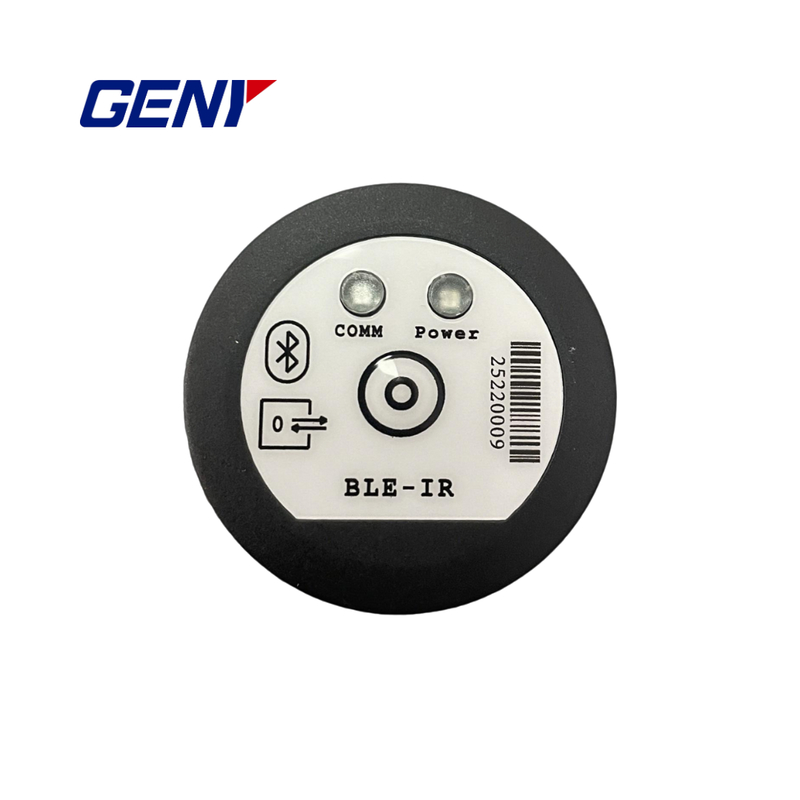

BLE-IR Optical Probe

BLE-IR Optical Probe

브랜드 이름: GENY
모델 번호: 블루투스 5.3 BLE/타입-C
MOQ: 1
가격: negotiate rates
지불 조건: t/t, l/c, d/p, t/t
공급 능력: 10개/1개월
상세 정보
원래 장소:
중국
인증:
ISO, CE
통신 인터페이스:
블루투스 5.3 BLE/타입-C
배터리 기능:
3.7V / 130mAh
포장 세부 사항:
합판 케이스
공급 능력:
10개/1개월
강조하다:

BLE-IR optical probe meter accessory

,

infrared optical probe for testing

,

optical probe with BLE connectivity

제품 설명
BLE-IR Optical Probe
Technical Specifications
Items Features
Communication Interface Bluetooth 5.3 BLE / Type-C
Transparent Communication Mode IEC 62056-21 Mode C / Mode E / User Mode ANSI C12.18 / ANSI C12.18-2006 type2
Smart Communication Mode IEC 62056-21 Mode C / Mode E
Battery Feature 3.7V / 130mAh
Battery Charging Time 2 Hours-TypeC (Supported PD Fast Charge, 30m ≥ 80%)
Duration of communication ~ 10 hours
Standby Time ~ 60 days
Maximum B.R. 115200
Sensor Light Wave Length ~ 940 nm
USB2.0 to Type-C Cable length 1M in normal and 1.5M/2M/3M for option
Fastening Strong magnetic adhesion (Exceeding IEC62056-21 standard, tensile force ≥ 10N)
Magnet material N45 / N52 (Optional)
Mechanical Impact PBT+GF housing
Diameter & Height Optical port 32mm Diameter / H23mm
Weight 35 gr
Enclosure Material PBT+GF
Protection Class IP 51

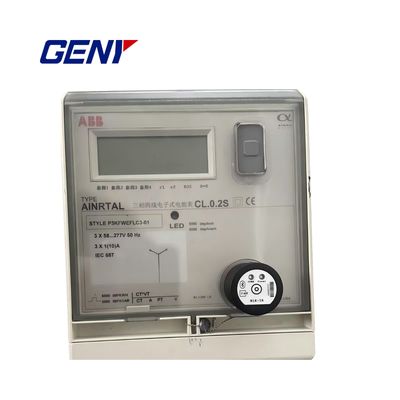

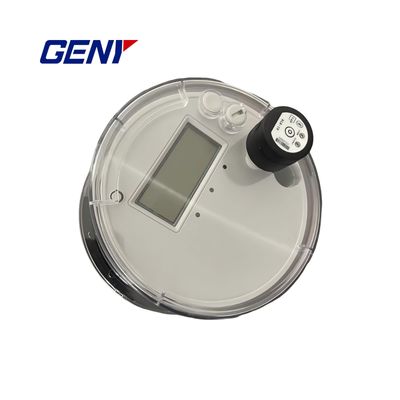

BLE-IR Optical Probe 0 BLE-IR Optical Probe 1 BLE-IR Optical Probe 2
