BLE-IR Bluetooth Optical Probe

BLE-IR Bluetooth Optical Probe

브랜드 이름: GENY
모델 번호: BLE-IR 블루투스 광학 프로브
MOQ: 1
가격: negotiate rates
지불 조건: t/t, l/c, d/p, t/t
공급 능력: 100개/1개월
상세 정보
원래 장소:
중국
인증:
ISO, CE
이중 연결:
Bluetooth 5.3 BLE 및 USB Type-C(드라이버 없음)
프로토콜 지원::
IEC 62056-21(모드 C/모드 E), ANSI C12.18
스마트 모드:
통신 매개변수를 자동 감지하여 설정 시간 단축
견고한 디자인:
강력한 자기 접착력(≥10 N), 충격 방지 하우징(IP51)
배터리 수명이 길다:
최대 10시간 연속 사용, 60일 대기
빠른 충전:
USB-C PD를 통해 30분 안에 80%
가볍고 컴팩트함::
Ø32mm × 23mm, ≒35g
포장 세부 사항:
합판 케이스
공급 능력:
100개/1개월
강조하다:

BLE-IR Bluetooth optical probe

,

Bluetooth optical probe with warranty

,

Meter testing accessory optical probe

제품 설명

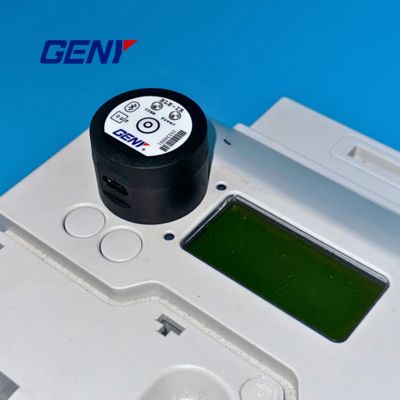

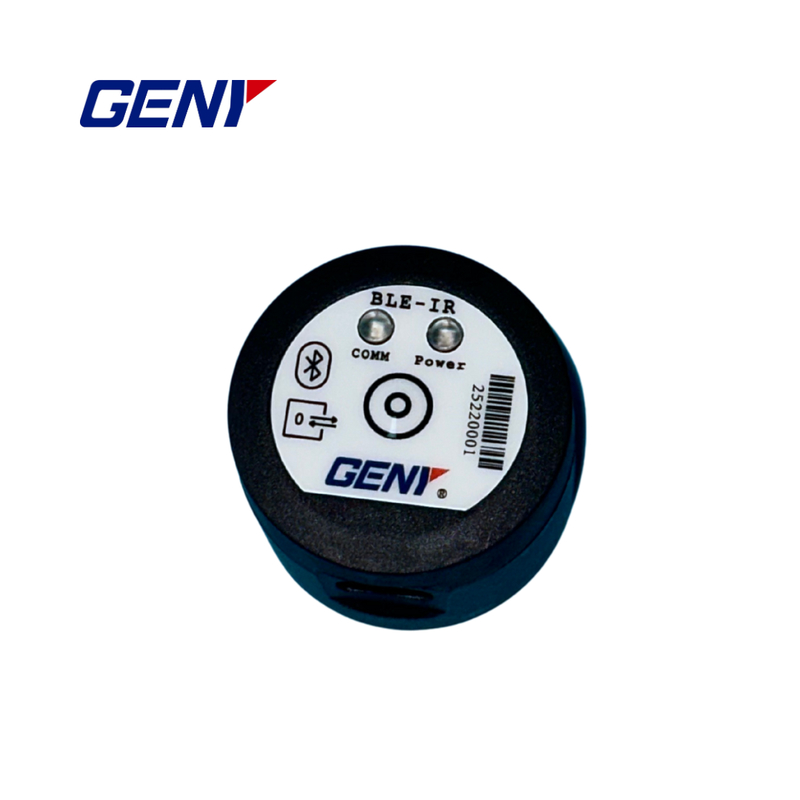

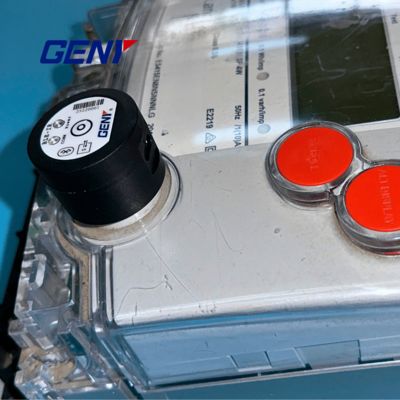

BLE-IR Bluetooth Optical Probe
Next-Generation Optical Communication for Smart Meter Testing

The BLE-IR from Guangzhou Geny Electric Ltd. is a next-generation Bluetooth optical probe designed to make smart meter testing, commissioning, and maintenance faster and easier. With Bluetooth 5.3 BLE and USB Type-C dual connectivity, it ensures fast, reliable, and flexible optical communication for both lab and field environments.

Key Features
  • Dual Connectivity: Bluetooth 5.3 BLE & USB Type-C (driver-free)
  • Protocol Support: IEC 62056-21 (Mode C / Mode E), ANSI C12.18
  • Smart Mode: Auto-detects communication parameters to reduce setup time
  • Rugged Design: Strong magnetic adhesion (≥10 N), impact-resistant housing (IP51)
  • Long Battery Life: Up to 10 hours continuous use, 60 days standby
  • Fast Charging: 80% in 30 minutes via USB-C PD
  • Lightweight & Compact: Ø32 mm × 23 mm, ≈35 g
Highlights
  • Adaptive IEC 62056-21 communication for faster, error-free testing
  • Works with Geny test systems or third-party tools
  • Firmware upgradable via Bluetooth or USB
Availability

Now available through Guangzhou Geny Electric and authorized distributors.
Optional USB-C cables (1 m-3 m) and magnet grades (N45/N52) available.
